General information
| |
|
Model:
|

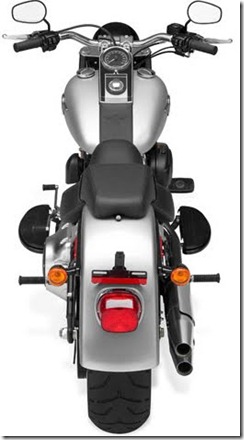

Harley-Davidson FLSTF Fat Boy
|
|
Year:
|
2011
|
|
Category:
|
Custom / cruiser
|
|
Rating:
|
70.4 out of 100. Show full rating and compare with other bikes
|
|
Price as new (MSRP):
|
Rs.19.7 Lakhs. Prices depend on country, taxes, accessories, etc.
|
|
Displacement:
|
1584.00 ccm (96.66 cubic inches)
|
|
Engine type:
|
V2, four-stroke
|
|
Engine details:
|
Twin Cam 96B
|
|
Torque:
|
127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3000 RPM
|
|
Compression:
|
9.2:1
|
|
Bore x stroke:
|
95.3 x 111.1 mm (3.8 x 4.4 inches)
|
|
Valves per cylinder:
|
2
|
|
Fuel system:
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
|
|
Fuel control:
|
DOHC
|
|
Lubrication system:
|
Pressurized, dry-sump
|
|
Cooling system:
|
Air
|
|
Gearbox:
|
6-speed
|
|
Transmission type,
|
Belt
|
|
final drive:
| |
|
Clutch:
|
9-plate, wet
|
|
Driveline:
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio
|
|
Exhaust system:
|
Chrome, over/under shotgun exhaust with dual mufflers
|
|
Frame type:
|
Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
|
|
Rake (fork angle):
|
31.0°
|
|
Trail:
|
147 mm (5.8 inches)
|
|
Front suspension:
|
41.3mm telescopic, “beer can” covers
|
|
Front suspensiontravel:
|
130 mm (5.1 inches)
|
|
Rear suspension:
|
Hidden, horizontal-mounted, coil-over
|
|
Rear suspension travel:
|
109 mm (4.3 inches)
|
|
Front tyre dimensions:
|
140/75-R17
|
|
Rear tyre dimensions:
|
200/55-R17
|
|
Front brakes:
|
Single disc. 4-piston
|
|
Front brakes diameter:
|
292 mm (11.5 inches)
|
|
Rear brakes:
|
Single disc. 2-piston
|
|
Rear brakes diameter:
|
292 mm (11.5 inches)
|
|
Wheels:
|
Silver, Bullet Hole Disc Cast Aluminum
|
|
Physical measures and capacities
| |
|
Dry weight:
|
314.8 kg (694.0 pounds)
|
|
Seat height:
|
699 mm (27.5 inches) If adjustable, lowest setting.
|
|
Overall length:
|
2,396 mm (94.3 inches)
|
|
Ground clearance:
|
130 mm (5.1 inches)
|
|
Wheelbase:
|
1,638 mm (64.5 inches)
|
|
Fuel capacity:
|
19.70 litres (5.20 gallons)
|
|
Oil capacity:
|
3.30 litres (0.22 quarts)
|
|
Starter:
|
Electric
|
|
Instruments:
|
Electronic
speedometer with odometer, time-of-day clock on odometer, dual
tripmeter, fuel gauge with low fuel warning light and countdown feature,
low oil pressure indicator light, engine diagnostics readout, LED
indicator lights, 6-speed indicator light
|
|
Factory warranty:
|
24 months, unlimited mileage (US)
|
|
Color options:
|
Vivid Black, Scarlet Red, Brilliant Silver Pearl, Flame Blue Pearl, Black Ice Pearl
|
